Esta tarjeta con contador de tiempo de 4 dígitos puede fijar el tiempo, el valor y el tiempo dado con un Selector de Monedas.
También controla dispositivos electrónicos (PC, TV, silla de mensajes, Agua de la bomba, Lavadoras, Consolas, etc).
Permite establecer la cantidad acumulada de depósito para una unidad de temporización para controlar el tiempo de suministro de energía y la longitud de la unidad de temporización.

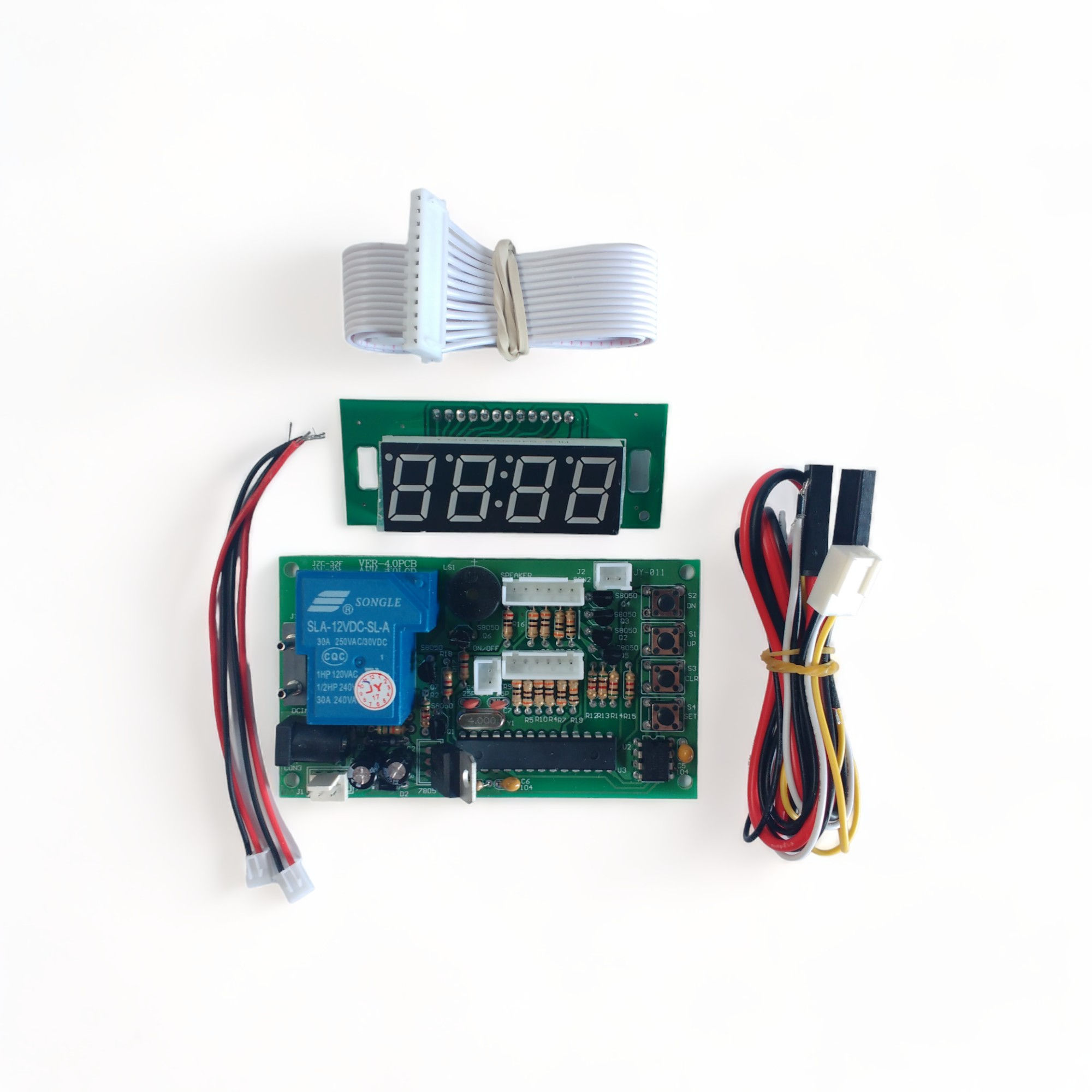

Temporizador (JY-15B) con Display de 4 Digitos

$220.000,00 Precio
$176.000,00Precio de oferta
IVA incluido
Cantidad

  • JY-15B Timer Board With Wire



    This is a good quality timer board, model CH-15 with wire.
    Free to set up time, value, given time.
    Warning sound for last 30 seconds.

    Model JY-15B Timer board with wire



    Specifiction

    • Size:54.3mm*94.0mm
    • Free to set up time, value, given time.
    • Warning sound for last 30 seconds.
    • AC 1250W DC500Watt electrical relay capacity.
    • Controls electrical devices (PC, TV, Massage chair...) power.



    Setting

    GIVEN TIME AND VALUE: User can get extra free time when the amount reach the value you have set up during the working time.
    If the function of GIVEN TIME is not needed, please follow No.1-No.5.
    If the function of GIVEN TIME is needed, please follow No.1-No.4 and No.6-No.9.

    1. Please choose TIME TYPE by Dip switch. ON:HOUR:MINUTE OPPOSITE:MINUTE:SECOND.
    2. Please press button "S4", and then please use button "S1" and button "S2" to set up VALUE.
    3. Please press button "S4", and then please use button "S1" and button "S2" to set up TIME for FIRST 2 NUMBER.
    4. Please press button "S4", and then please use button "S1" and button "S2" to set up TIME for LAST 2 NUMBER.
    5. Please press button "S4" 3 times to finish.
    6. Please press button "S4", and then please use button "S1" and button "S2" to set up VALUE OF GIVEN TIME.
    7. Please press button "S4", and then please use button "S1" and button "S2" to set up TIME for FIRST 2 TIME.
    8. Please press button "S4", and then please use button "S1" and button "S2" to set up TIME for LAST 2 TIME.
    9. Please press button "S4" to finish.
